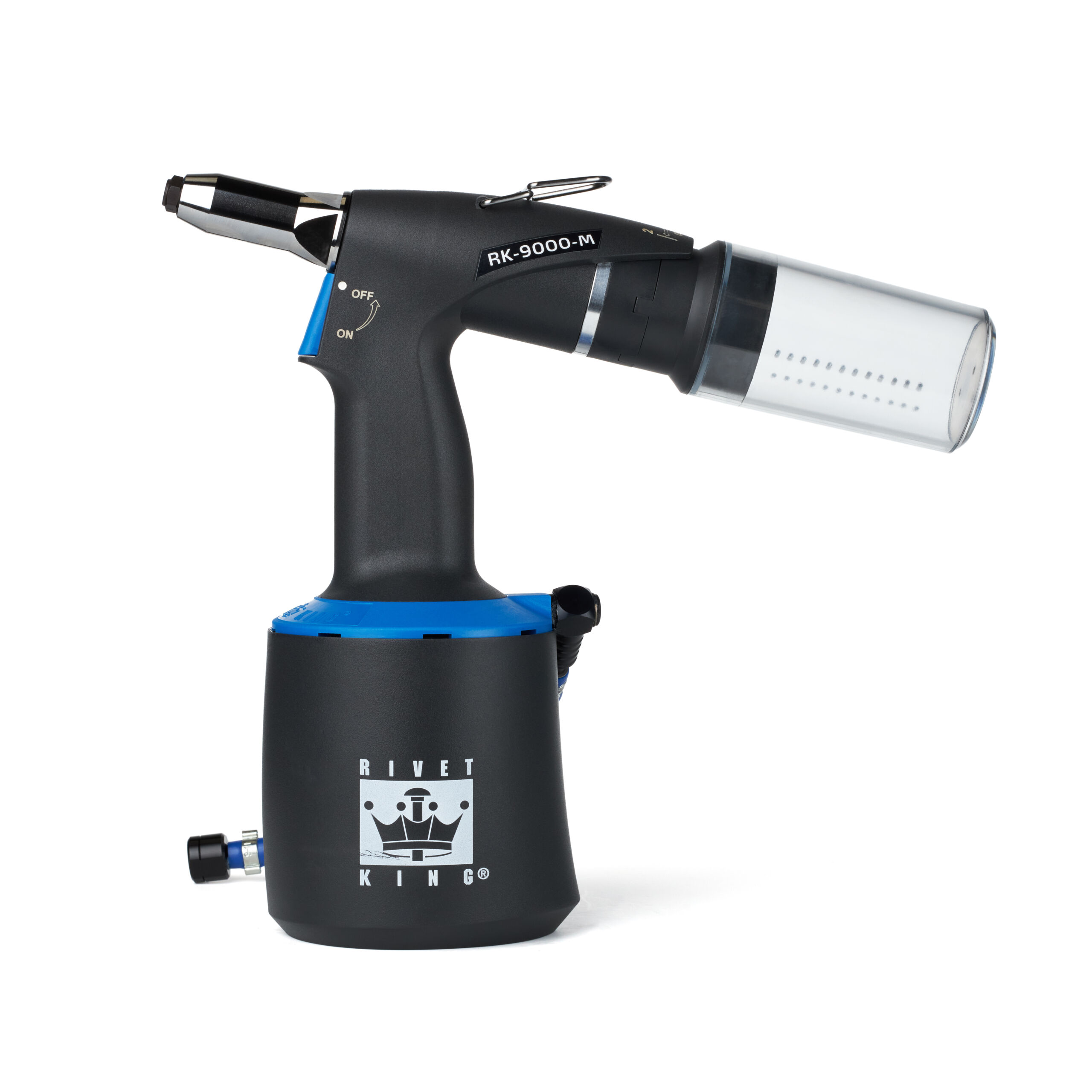

RK-9000 Series

RK-9000 Series

ROBUST, HIGH PERFORMANCE RIVETING – MAINTAINED BY PROFESSIONALS.
The fusion of power and speed, with an improved ergonomic and rugged design results in a series of tools for the most demanding production environments. The RK-9000 series offers a 360° adjustable air inlet for both left and right handed users. The vacuum force is greatly improved due to its efficient use of air, providing extreme extraction of the mandrel after riveting. The easy touch trigger requires less than .25 lbs force to activate. The rugged, glass filled nylon casing and high durometer rubber boot provides the tool with years of protection. All tools are serialized for tracking. Only care and cleaning is required of the users. Maintenance is supported by service centers nationwide.

The RK-9000S is perfect for 1/8” diameter rivets, while the RK-9000M is best for 3/16” and 5/32”. For extended grip or structural rivet applications, the RK-9000LS is suggested. The RK-9000LS is designed with an extra long stroke to ensure that the rivet is applied and the mandrel is withdrawn completely from the rivet in nearly any grip range.

WARNING: This product contains Nickel, PVC and/or Carbon Black; chemicals known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

  • Products
  • Models
  • Features/Benefits
  • Accessories/Spares
  • Product Assistance
  • Catalog
Model # Capacity Power
(lbs)
Stroke
(inches)
Weight (lbs) Drawing Tool Manual Parts List
RK-9000S 5/32″ Max 1640 0.670 2.75
RK-9000M 3/16″ Max 2450 0.825 3.63
RK-9000LS 1/4″ Max & Structural Rivets 3600 1.02 3.96

p

p

p

Product Assistance

RivetKing is a support-oriented company and has local application engineers to assist with product and tool selection. You may contact our sales department for technical guidance, or an application engineer for local support. Usually, we can be at your facility nationwide within 48 hours.

Sales Support: 1-800-289-7483
