ZipFix®

ZipFix®

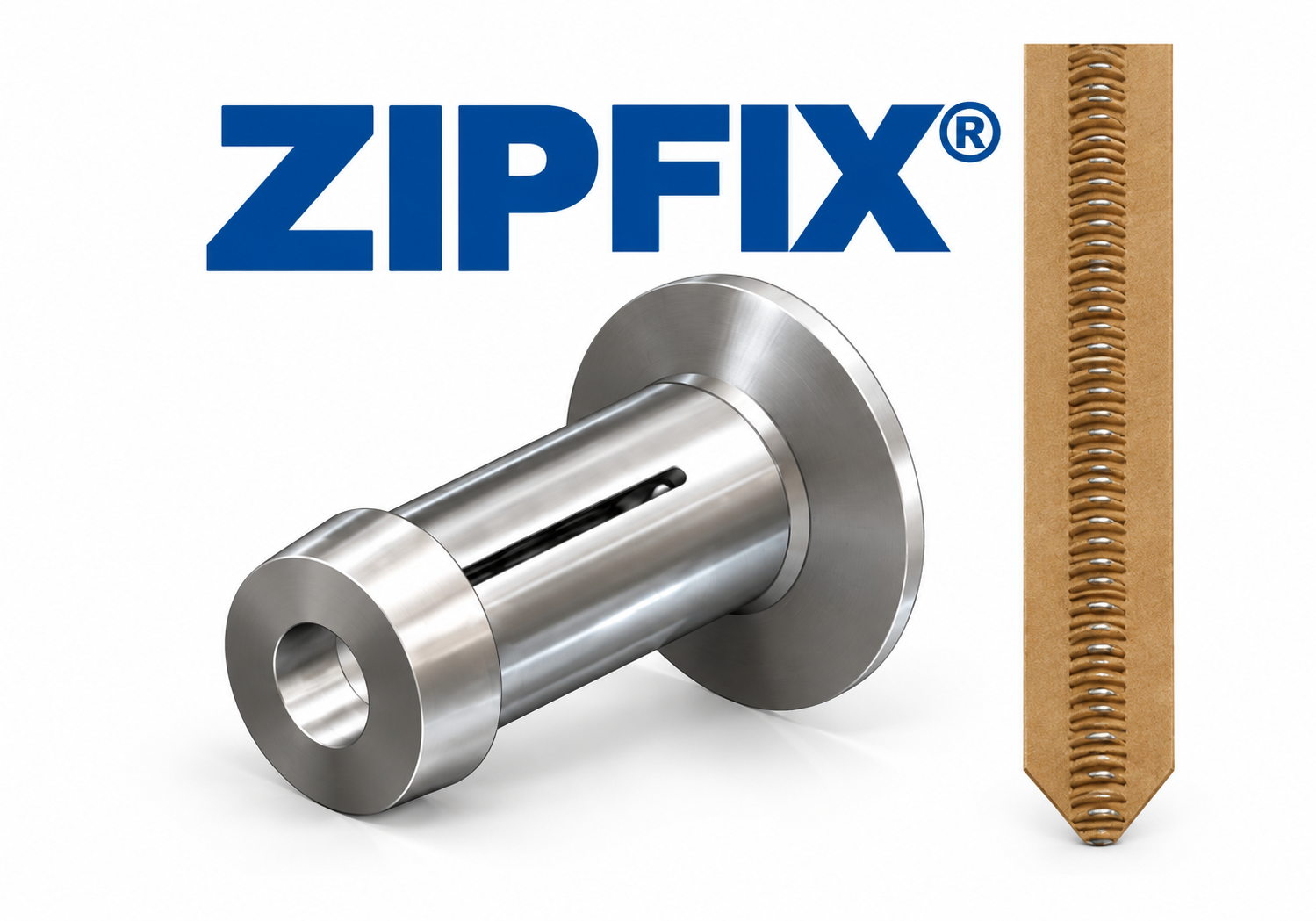

The RivetKing® ZipFix® is designed for use in soft materials, in larger holes over large grip ranges. Plastics, composites, acrylics and fabrics often make riveting difficult because the materials riveted are softer or more brittle than the rivet itself.  To eliminate the radial expansion, the Zipfix provides a wide bearing surface.  Pulling pressure is reduced whereby increasing the life of the mandrel.  Only one mandrel is necessary for ZipFix® products.

ZipFix® is offered on paper pods, or, preloaded on mandrels.  Quickriveting systems increase throughput due to the autofeed features.

  • Products
  • Design Considerations
  • CAD Files
  • Product Assistance
  • Catalog
Parts Number Diameter Grip Head Type Body Material Mandrel Material Category Sub-Cat Catalog Page Drawing Solid Model Tools
SDZR-3506/ROHS 0.137 .112 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

SDZR-3507/ROHS 0.137 .152 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

SDZR-4010 0.1415 .229 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

SDZR-4011 0.1415 .268 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

CAD Files

The following are available for download upon request by emailing engineering@rivet.com

.dxf
.dwg
.IGES
.SLDPRT

Product Assistance

RivetKing is a support-oriented company and has local application engineers to assist with product and tool selection.  You may contact our sales department for technical guidance, or an application engineer for local support. Usually, we can be at your facility nationwide within 48 hours.

Sales Support: 1-800-289-7483

Catalog

ZipScrew Catalog Page
(1.0 MB)
Blind Rivet Catalog
(2.0 MB)
