JF Series

JF Series

The RivetKing JF Series Rubber Nut is used as a removable rivetnut.  Installation is performed with the bolt or screw itself.  To remove the rivet nut, just remove the bolt or screw.  Rubnuts can also be used as vibration isolators to prevent rattle and pullout.  Typical applications are for the installation of mirrors or other hardware in utility trucks, compressors, and engines.

  • Products
  • Product Assistance
  • Description
  • Design Considerations
  • CAD Files
  • Catalog

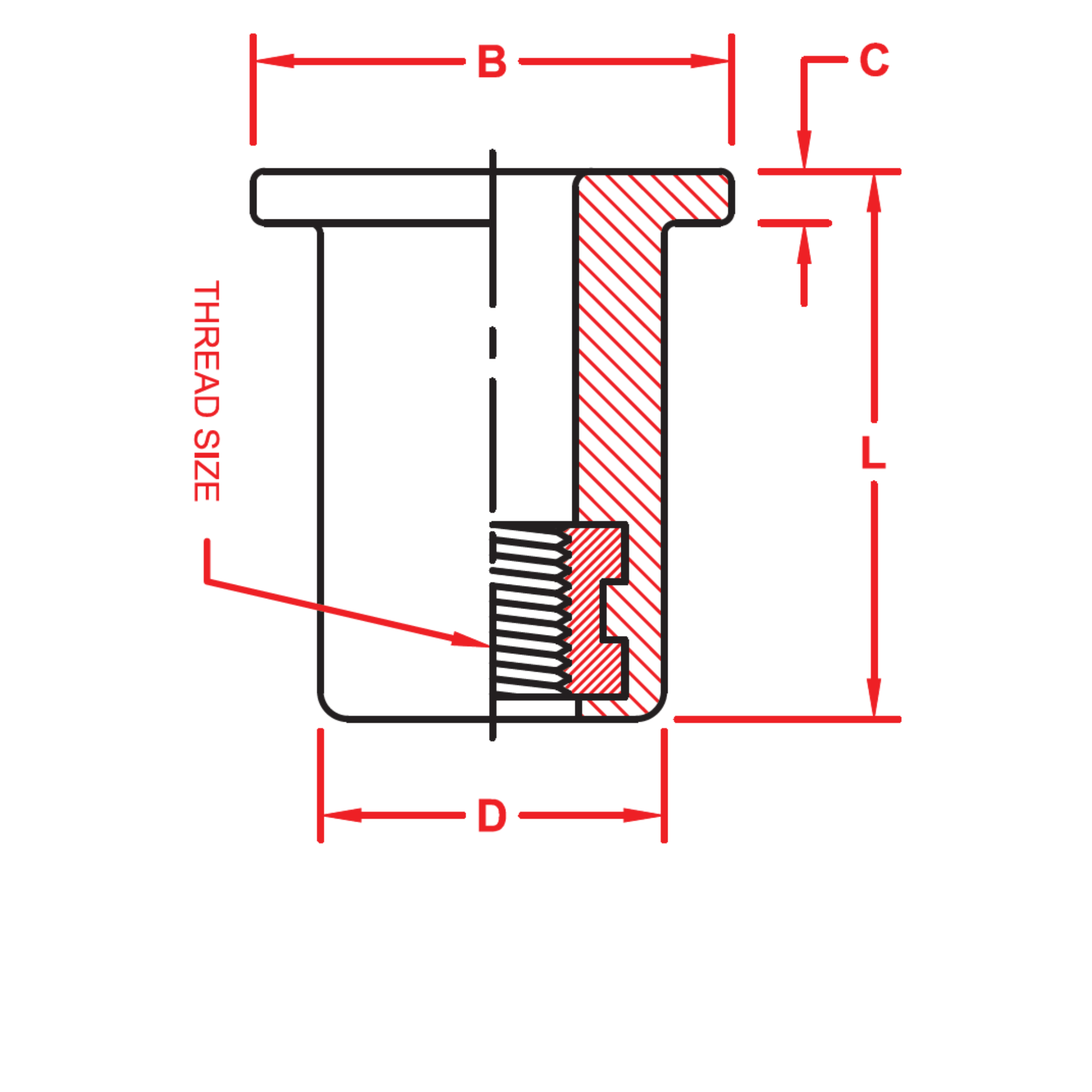

Part Code Thred Size Grip Code Grip Range Length Head Diameter Head Height Body Diameter (max) Hole Size
Inch JF-3100 6-32 UNC #1 .015 – .156 .499 .452 .062 .312 .312
JF-3250 6-32 UNC #2 .375 – .607 .981 .554 .035 .240 .250
JF-4100 8-32 UNC #1 .015 – .156 .499 .438 .052 .312 .312
JF-4140 8-32 UNC #2 .015 – .172 .560 .750 .060 .312 .312
JF-5150 10-32 UNF #1 .015 – .192 .554 .500 .036 .377 .377
JF-5170 10-32 UNF #2 .035 – .232 .665 .562 .040 .377 .377
JF-5190 10-32 UNF #3 .030 – .227 .807 .750 .187 .377 .377
JF-6150 1/4-20 UNC #1 .015 – .111 .630 .630 .051 .500 .500
JF-6200 1/4-20 UNC #2 .031 – .187 .831 .740 .187 .500 .500
JF-6250 1/4-20 UNC #3 .250 – .457 1.051 .635 .051 .500 .500
JF-8200 5/16-18 UNC #1 .016 – .156 .725 .875 .125 .562 .562
JF-8250 5/16-18 UNC #2 .156 – .375 1.100 .875 .225 .562 .562
JF-1027 3/8-16 UNC #2 .015 – .437 1.062 1.250 .187 .750 .750
Metric JF-3100M M3-0.5 #1 .040 – 4.00 12.60 11.00 1.40 7.90 7.90
JF-3250M M3-0.5 #2 .950 – 15.40 24.90 14.00 0.90 6.10 6.10
JF-4100M M4-0.7 #1 .040 – 4.00 12.60 11.00 1.40 7.90 7.90
JF-4140M M4-0.7 #2 .040 – 4.40 14.20 19.05 1.50 7.90 7.90
JF-5150M M5-0.8 #1 .040 – 4.90 14.10 12.70 0.90 9.60 9.60
JF-5170M M5-0.8 #2 .085 – 5.90 17.00 14.00 1.00 9.60 9.60
JF-5190M M5-0.8 #3 .080 – 5.80 20.95 18.95 4.40 9.60 9.60
JF-5250M M5-0.8 #1 .790 – 16.00 26.50 14.00 1.30 9.60 9.60
JF-6200M M6-1.0 #2 .080 – 4.70 21.10 19.05 4.75 12.70 12.70
JF-6250M M6-1.0 #3 .640 – 11.50 26.70 16.30 2.00 12.70 12.70
JF-8200M M8-1.25 #1 .040 – 4.00 18.30 21.50 3.20 15.90 15.90
JF-8250M M8-1.25 #2 .395 – 9.50 27.90 21.50 5.70 15.90 15.90
JF-1027M M10-1.5 #2 .038 – 11.10 27.00 29.50 4.75 19.05 19.05

Industrial Rivet & Fastener Co. can help you select the right product or tool for your application.  Please contact our experienced Product Specialists with any questions.  We look forward to hearing from you!  1-800-BUY-RIVET or info@rivet.com

Type: JF Series Rivet Nut, Rubber Well Nut Material: Brass or Stainless Finish: EPDM

Design Considerations

Grip Range: Determining the length of the rivetnut is critical to ensure it will function as intended. If the rivetnut is applied over or under the specified grip range, it will not work properly. Be sure to accommodate for the “theoretical” grip versus the “actual” grip. While two pieces of sheet metal each are .055 thick, it doesn’t necessarily mean that the actual grip will be .110. Burrs or bends in the sheet metal could affect the theoretical grip. Hole Size & Shape: The Rivetnut will only work if it is used within the prescribed hole size. The design engineer should calculate the manufacturing tolerances of the hole to ensure proper fit so that interference issues will not arise at a later time. Holes should be round for round body rivetnuts, and hex for hex body rivetnuts. Oval, Square or out-of-round shapes require the rivetnut to be custom produced. Tool Clearance: There must be adequate clearance above the hole so that riveting equipment can access the hole to be riveted without interference. Be sure to incorporate the riveting equipment in the design phase to prevent the need for customized and potentially costly tooling modifications. Head Clearance: Axial access is required on the primary sheet being riveted to allow for the flange to overlap the hole without interference. When designing the primary hole, make sure to calculate the head diameter and its tolerances and layout the foot print of the head around the hole. This is especially critical when riveting near other hardware, next to bends or folds, extrusions and/or cutouts on the sheet metal. Blind Side Clearance: Since the blind side of the rivetnut is designed to form into a secondary flanged bearing surface, it is important to leave room forthe flange to expand and to seat properly. Make sure the backside can accommodate the entire rivet before riveting. Testing should be done in the design phase to calculate what distances are needed. Galvanic Action: Galvanic action is seldom considered in design but can often be one of the hidden causes of failures. Galvanic corrosion is accelerated electromechanical corrosion produced when a noble metal is in contact with another less noble metal, both being in a corrosive medium (such as damp air). The less-noble metal corrodes at a faster rate than normal while the noble metal acquires greater corrosion protection. For an example, an aluminum (less-noble metal) rivet in copper (more-noble metal) would cause aluminum to corrode at an accelerated rate while the copper would be virtually unaffected. Should you be in a position of having to join two dissimilar metals, be sure to consult the galvanic series table. Corrosion Protection: The corrosion factor of a particular rivet is dependent on the corrositivity of the base metal, the protection layer (plating), and the conversion layer (chromate). Being that the most cost-effective material to produce is steel, most prefer to protect the steel with a plating such as Zinc and a chromate. Rivetnuts require a specialized plating & wax, therefore it is highly suggested that the manufacturer perform this task. Do not attempt to reprocess rivetnuts! For standard performance, a SST rating (salt spray test) is about 48 hours until Red Rust. Other platings such as Zinc alloy’s (ZiNi, ZnFe, ZnTi) are available which can extend the SST rating to 840 hours until red rust. Be sure the plating is tested by the manufacturer per ASTM B117 standard and that the manufacturers’ lab is proficiency tested semi-annually.

CAD Files

The following are available for download upon request by emailing engineering@rivet.com .dxf .dwg .IGES .SLDPRT
