RK-753

RK-753

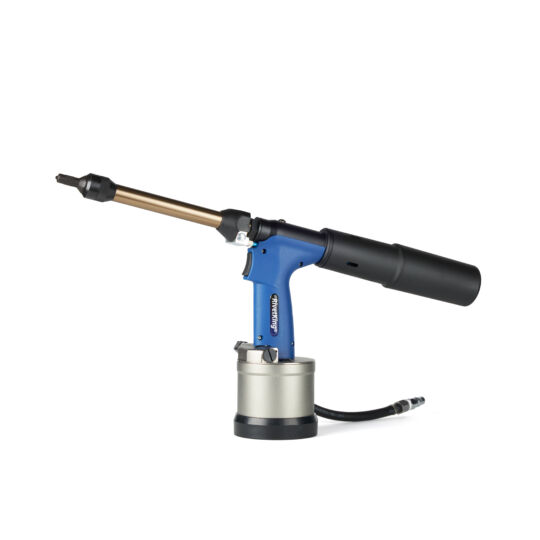

The RK-753 sets rivets that are provided on magazines called pods with up to 80 rivets per pod. Pods are easily loaded into a lightweight 3lb riveting handle for installation speeds of up to 1 rivet per second. Rivets are installed by the withdrawal of a reusable mandrel that radially expands the entire body of the rivet. Because the mandrel is completely withdrawn, there is no mandrel waste on the assembly floor. Perfect for electronics applications.

WARNING: This product contains Nickel, PVC and/or Carbon Black; chemicals known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

  • Models
  • Description
  • Product Assistance
  • Features/Benefits
  • Accessory
  • Catalog

p

Model # Capacity Power
(lbs)
Stroke
(inches)
Weight (lbs) Drawing Tool Manual Parts List
RK-753 3/32” (2.4),  1/8” (3.2),               5/32” (4.0),  3/16” (4.8) 874 1.18" Minimum 2.38

Industrial Rivet & Fastener Co. can help you select the right product or tool for your application.  Please contact our experienced Product Specialists with any questions.  We look forward to hearing from you!  1-800-BUY-RIVET or info@rivet.com
