ZipScrew®

ZipScrew®

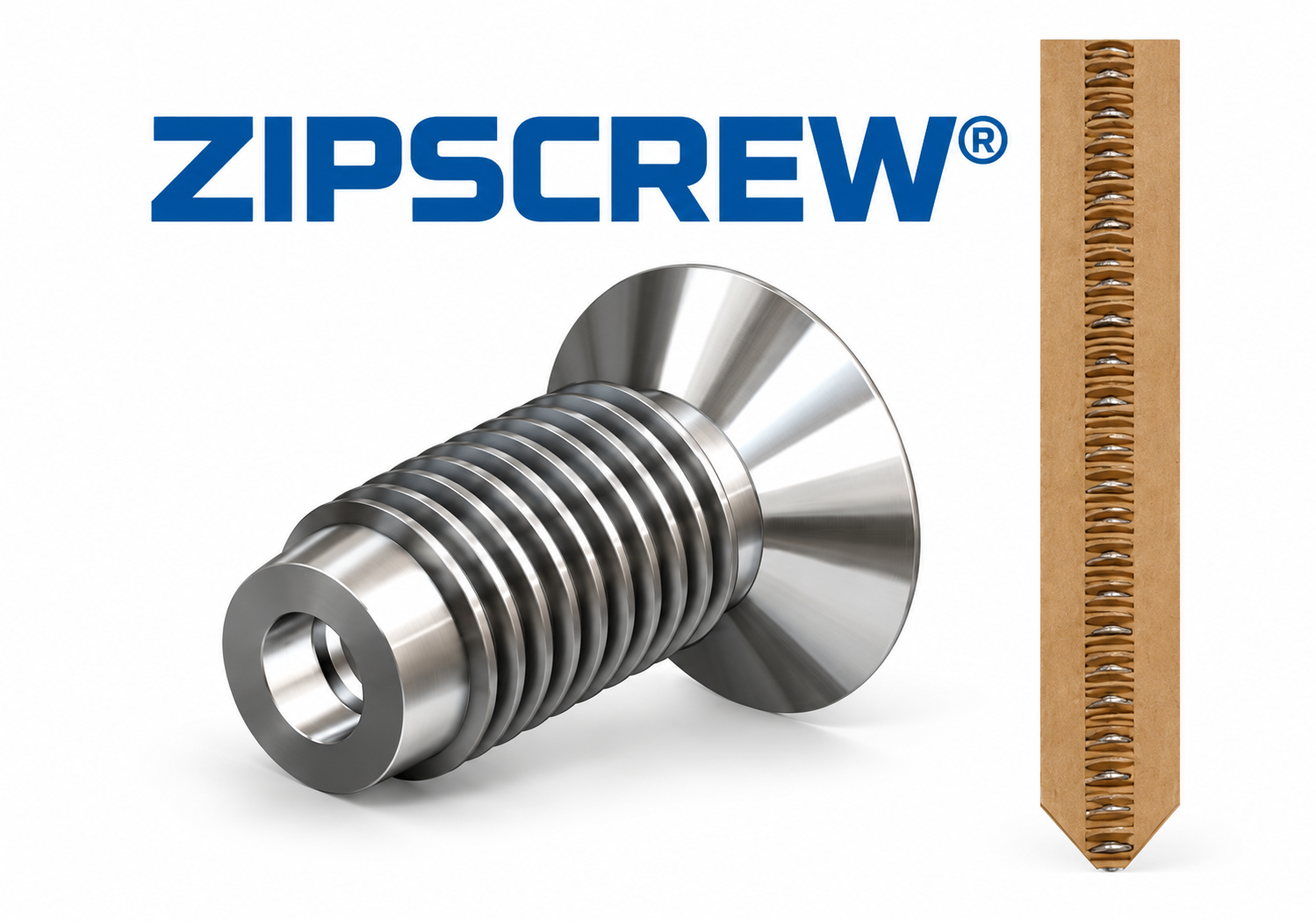

The RivetKing® ZipScrew® is a unique fastener which allows for repeated removal and replacement after installation. It is most often used in electronics where the removal and replacement of microchips, chipsets, mosfets, and similar components may be required. Often times the  ZipScrew® is preferred over traditional screws since the user benefits from the installation speed of a rivet and the removability of a screw. Once installed, the user can use a standard hex key to remove, and later reinstall the rivet just like a screw. The ZipScrew® radially expands resulting in a vibration resistant assembly. It can be used in materials with less than 105 Hv5 hardness.

  • Products
  • Description
  • Design Considerations
  • CAD Files
  • Product Assistance
  • Catalog
Parts Number Diameter Grip Head Type Body Material Mandrel Material Category Sub-Cat Catalog Page Drawing Solid Model Tools
SDZR-3506/ROHS 0.137 .112 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

SDZR-3507/ROHS 0.137 .152 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

SDZR-4010 0.1415 .229 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

SDZR-4011 0.1415 .268 max DOME RivetSpeed ZIPSCREW Catalog Page Catalog Page Catalog Page

S, NA

CAD Files

The following are available for download upon request by emailing engineering@rivet.com

.dxf
.dwg
.IGES
.SLDPRT

Product Assistance

RivetKing is a support-oriented company and has local application engineers to assist with product and tool selection.  You may contact our sales department for technical guidance, or an application engineer for local support. Usually, we can be at your facility nationwide within 48 hours.

Sales Support: 1-800-289-7483

Catalog

ZipScrew Catalog Page
(1.0 MB)
