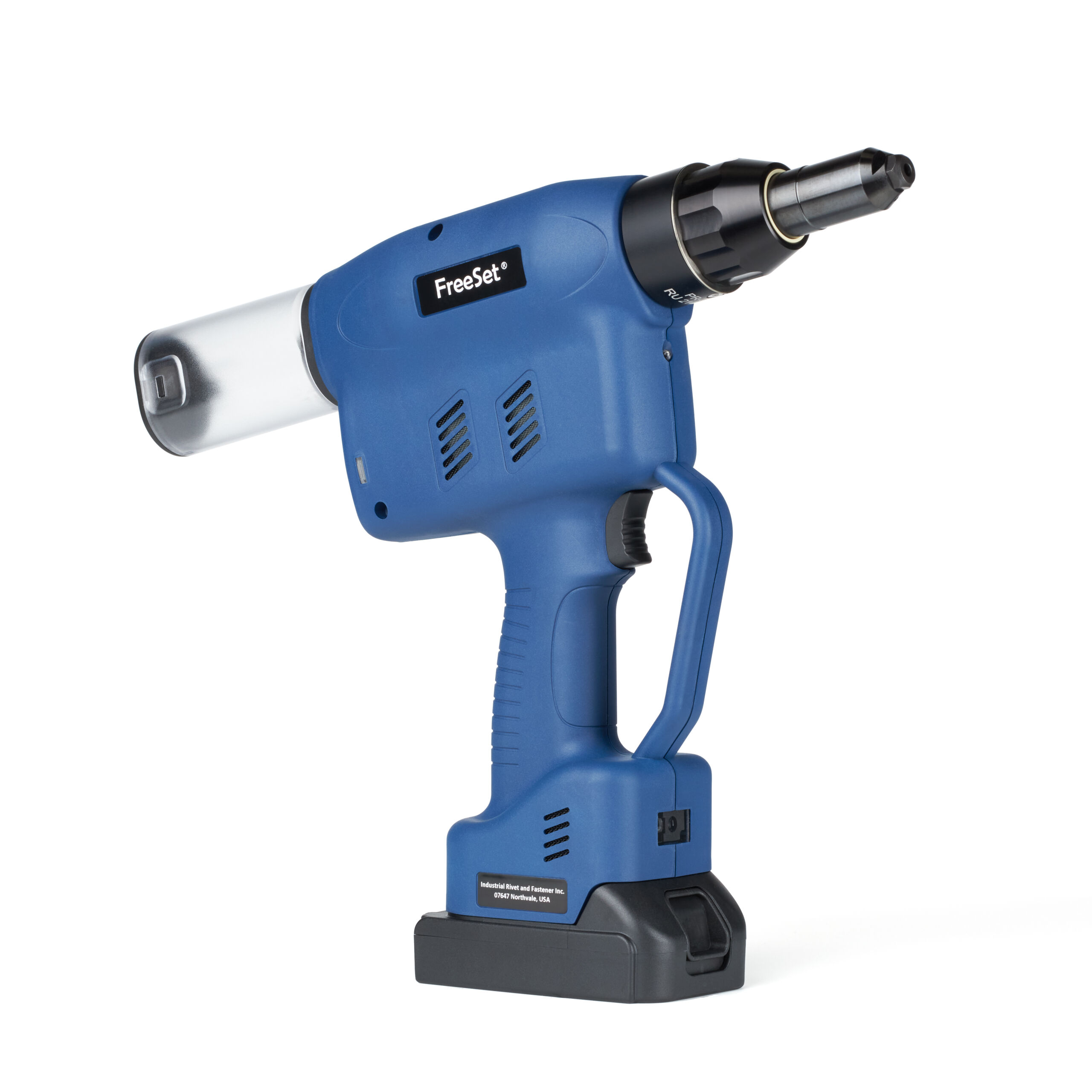

RK-777C-3 FreeSet® Poka-Yoke
RK-777C-3 FreeSet® Poka-Yoke
Safer Work Environment • Cordless!, Eliminates trip hazards • Improved ergonomics • no hoses • no fittings • no air pressure • no oil emitted into the air as is typical with pneudraulic tools.
Increased Efficiency & Productivity • FreeSet™ Technology drastically increases tool speed • Cordless tools use 99% less energy than air tools • No pressure drops caused by compressors • No maintenance of oilers • No more supply line leaks
Maintenance • All models are equipped with Freeset Manager software which allows for preset preventive maintenance intervals by count and alerts the operator before jaw replacement or maintenance functions are necessary.
Reliability • No more oil, seals and gaskets. Completely electronic all forces are motor driven. Tools which have preventative maintenance reminders have higher reliability.
Breakthrough Technologies • The first riveting tool of its kind which can barcode scan, use WiFi to communicate with external systems and qualify the joint using the load cell. Measuring forces with a load cell, are far more accurate over time in comparison with transducers, current measurement and strain gages.
Quality & Process Monitoring • If you have problems with rivets or riveted products, this is your thermometer, your doctor and your medicine in one prescription. Count rivets, qualify the process, communicate with external system, measure your results over time, document them and prevent failures by stopping them before it continues to move through production.
- Models
- Product Assistance
- Features/Benefits
- Accessory
- Download
- Catalog
*Tool capacity is subject to max force value.
| Model# | Capacity | MaxForce | Stroke | Speed | USB | Scanner | WiFi |
| RK-777C-3Q | up to ¼” (6.4mm) | 4900 lbs. | 1” (25.4mm) | 35mm/sec | Yes | Optional | Optional |
| RK-777C-3STR | up to ¼” (6.4mm) *Including Structural Blind Rivets | 4900 lbs. | 1” (25.4mm) | 25mm/sec | Yes | Optional | Optional |
| RK-777C-3STRXL | up to 9/32” (7.1mm) | 4900 lbs. | 1” (25.4mm) | 25mm/sec | Yes | Optional | Optional |
Industrial Rivet & Fastener Co. can help you select the right product or tool for your application. Please contact our experienced Product Specialists with any questions. We look forward to hearing from you! 1-800-BUY-RIVET or info@rivet.com
Safer Work Environment • Eliminates trip hazards • Improved ergonomics – no hose to drag around • No hoses to dirty or scratch painted or finished surfaces • Improves air quality by eliminating oil emitted with the air
Increased Efficiency • QuickDraw™ Technology drastically increases tool speed • Cordless tools use 99% less energy than air tools • No pressure drops caused by compressors • No maintenance of oilers • No more supply line leaks
Freeset™ tools with QuickDraw™ Technology are faster than pneudraulic and hydraulic tools. They can detect when a rivet is applied and quickly reset without having to complete an entire stroke cycle. • 18V, 2.5 Ah Lithium Ion battery • 12-month warranty against manufacturing defects • Tool does not come supplied with nosepieces – they must be ordered separately Freeset™ tools have a battery management system that prevents users from starting a job if the battery life is too low. This eliminates the risk of the tool shutting down mid-installation and not setting the lockbolt properly. CAUTION: When operating always wear safety glasses to protect your eyes.
Increased Quality of riveted joints:
- Pressure Trigger (if configured)
- Error Proofing -3 Models Only –
- Process Monitoring and Error Proofing Features
- Freeset Manager Software
- Configurable Settings
- Maintenance Reminders
- Rivet Counting
- Riveting Job Management
- Wifi Communication with external devices
- Barcode Reader
- Pressure Trigger
- Graphical Analysis
- Pass/Fail
Instruction Manual – RK-777C 2022 RevB –
 |
 |
| Tool Catalog | Freeset Brochure |
Related products

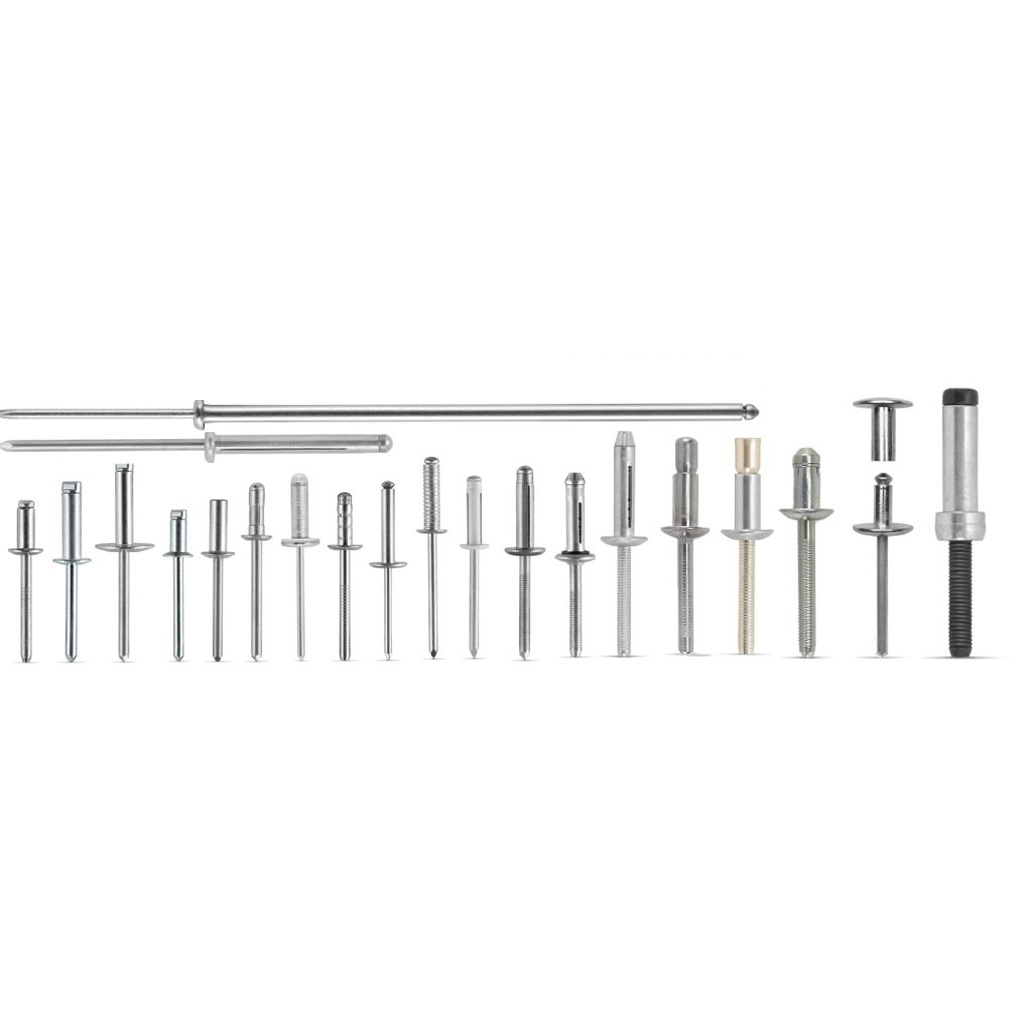

Blind Rivet FreeSet® For Blind Rivets up to 1/4" (6.4mm)
