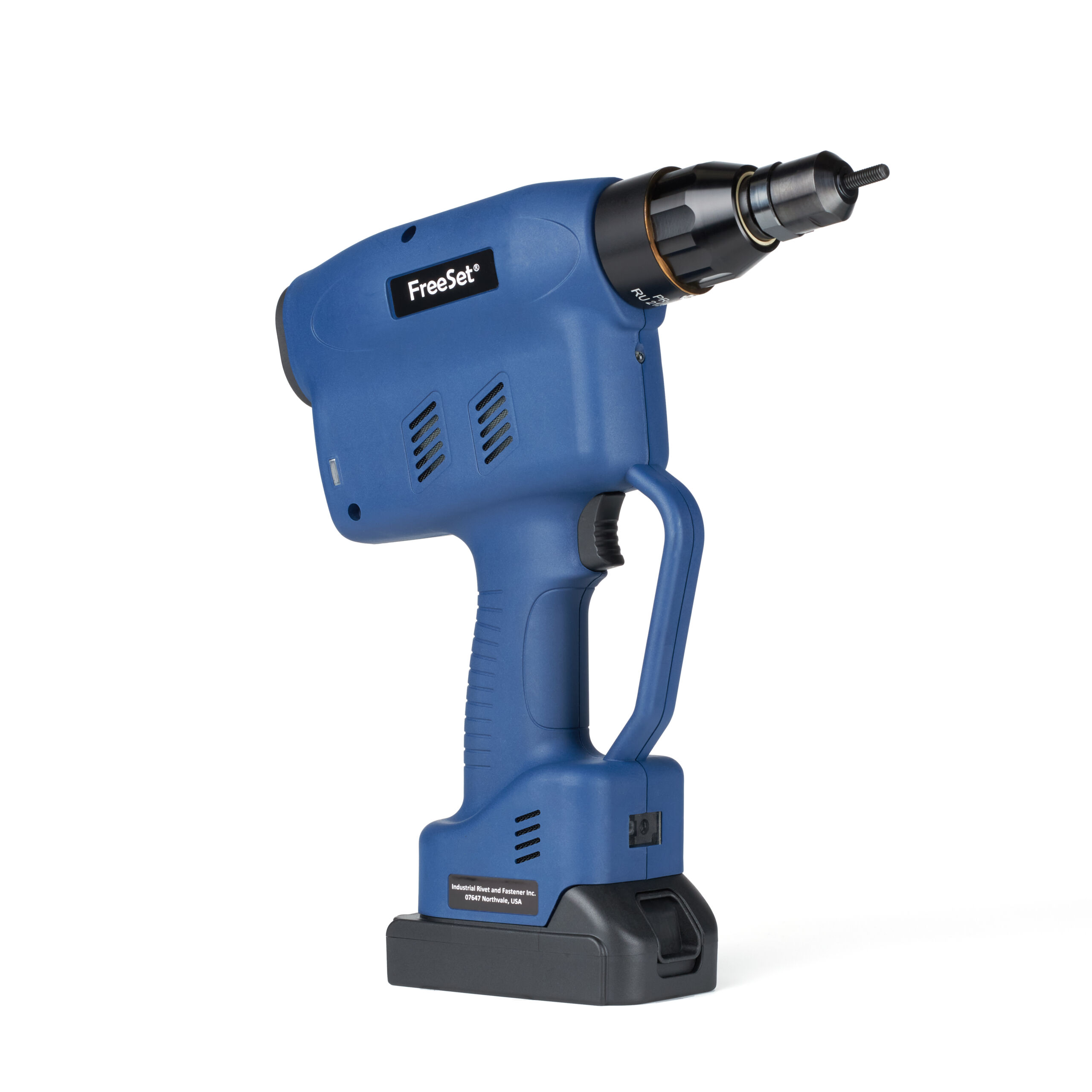

RK-787C-1 FreeSet® Only Cordless
RK-787C-1 FreeSet® Only Cordless
FreeSet® is a groundbreaking technology which offers the freedom of battery operated tools combined with smart technologies to provide an interactive riveting experience.
The concept is simple: Add intelligence to a high performance tool, with a renewable energy source and you arrive with the technology of FreeSet. FreeSet is a tool offered in a variety of configurations which can meet and exceed the standards of its users. Whether operating without access to a compressor, decluttering work cells, or incorporating error proofing strategies in the production line, FreeSet can be configured to solve nearly any assembly problem.
FreeSet® technology can be used to apply Rivet Nuts, or Rivet Studs and can be configured with accessories that increase productivity and ensure quality.
The RK-787C-1 version is specialized to install Rivet Nuts and a Rivet Stud with a pull-to-stroke strategy. It provides robust control of quality and maintenance , providing both visual and audible OK/ NO-OK indicators via the multicolor display.
This tool is ECO friendly and considered a Green technology as the battery life is managed by the tools microprocessor and smart charger. This extends battery life for years. In addition, this tool can be used in calculations to reduce your CO2 foot print.
- Models
- Product Assistance
- Features/Benefits
- Accessory
- Download
- Catalog
| Model# | Capacity | Max Force | Max Stroke | Max Speed | USB | Scanner | WiFi |
| RK-787C-1 | 3/8″/M10* | 5620 lbf (25 kN**) | 0.83 in. (21mm) | 35mm/sec | Yes (With limited use of Freeset Manager) | No | No |
*Tool capacity is subject to max force value.
**Limited warranty above 4500 lbf (20 kN)
Industrial Rivet & Fastener Co. can help you select the right product or tool for your application. Please contact our experienced Product Specialists with any questions. We look forward to hearing from you! 1-800-BUY-RIVET or [email protected]
Safer Work Environment • Eliminates trip hazards • Improved ergonomics – no hose to drag around • No hoses to dirty or scratch painted or finished surfaces • Improves air quality by eliminating oil emitted with the air Increased Efficiency • QuickDraw™ Technology drastically increases tool speed • Cordless tools use 99% less energy than air tools • No pressure drops caused by compressors • No maintenance of oilers • No more supply line leaks Freeset™ tools with QuickDraw™ Technology are faster than pneudraulic and hydraulic tools. They can detect when a rivet is applied and quickly reset without having to complete an entire stroke cycle. • 18V, 2.5 Ah Lithium Ion battery • 12-month warranty against manufacturing defects • Tool does not come supplied with nosepieces – they must be ordered separately Freeset™ tools have a battery management system that prevents users from starting a job if the battery life is too low. This eliminates the risk of the tool shutting down mid-installation and not setting the lockbolt properly. CAUTION: When operating always wear safety glasses to protect your eyes.
Increased Quality of riveted joints:
- Pressure Trigger (if configured)
- Error Proofing -3 Models Only –
- Process Monitoring and Error Proofing Features
- Freeset Manager Software
- Configurable Settings
- Maintenance Reminders
- Rivet Counting
- Riveting Job Management
- Wifi Communication with external devices
- Barcode Reader
- Pressure Trigger
- Graphical Analysis
- Pass/Fail
| File Description | Version | Download |
 Freeset Manager Software |
V.2.2.0 Build 2023.01.10 |  |
| Freeset Manager Firmware |
V2.8.0 | |
| Freeset Manager Drivers |
|
 |
 |
| Tool Catalog | Freeset Brochure |
