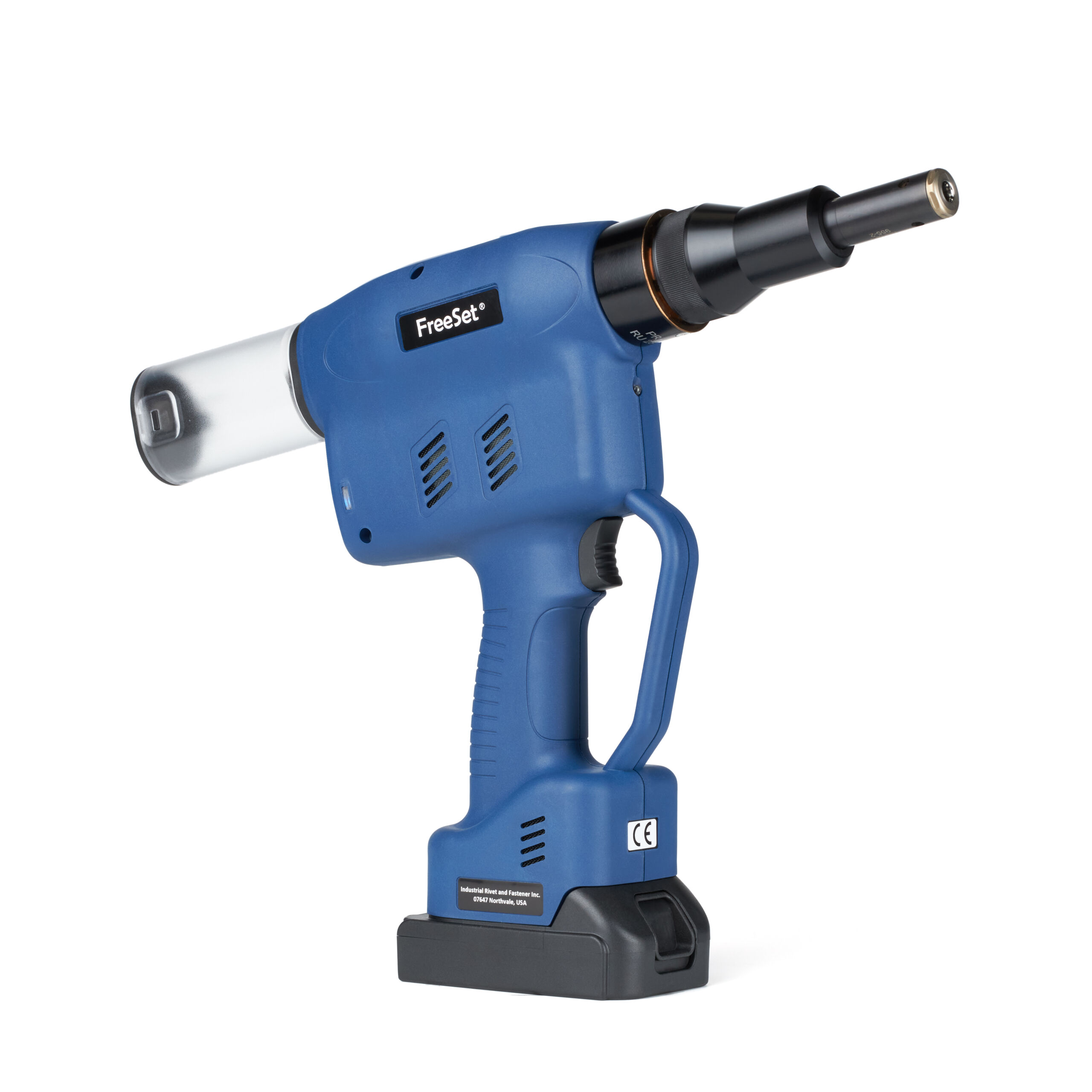

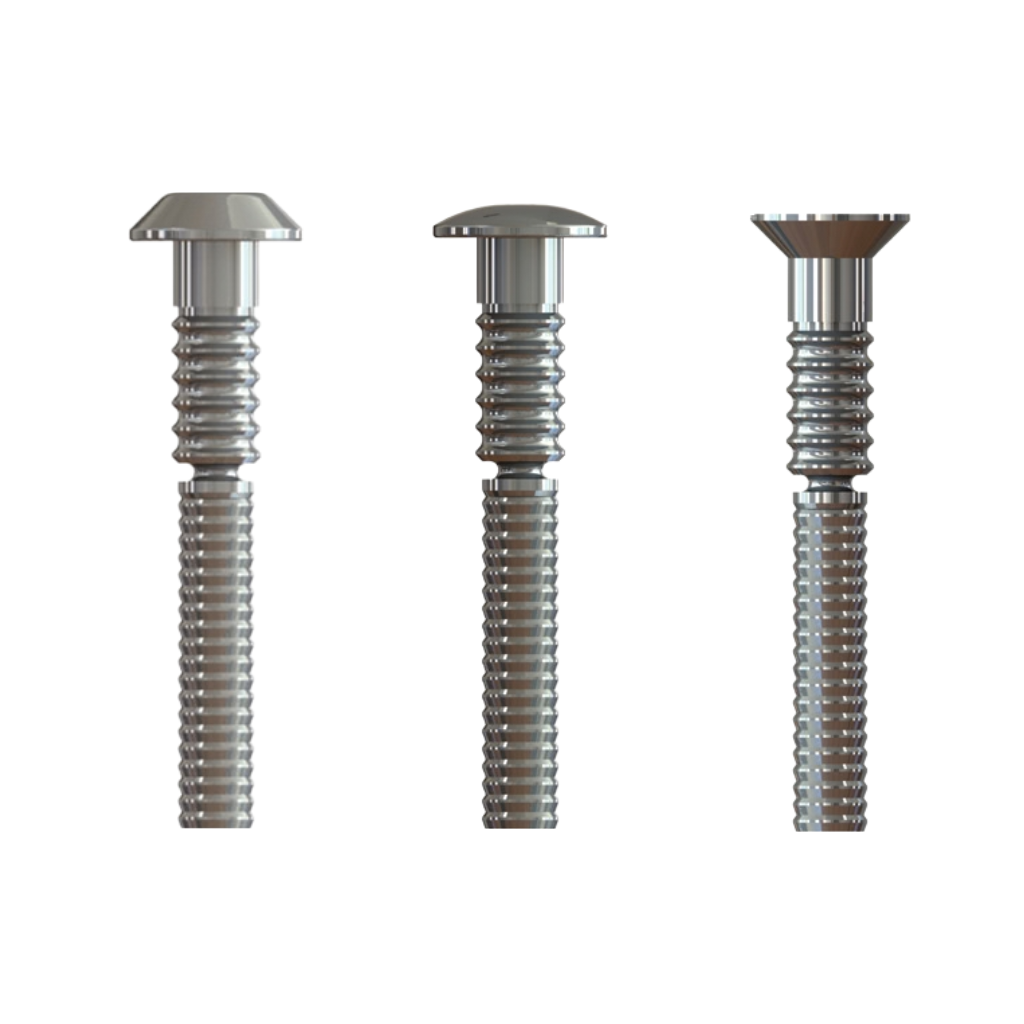

RK-797C-3 (Scan/WiFi) Process Monitoring 3/16″ & 1/4″For Lockbolts.

RK-797C-3 (Scan/WiFi) Process Monitoring 3/16″ & 1/4″For Lockbolts.

FreeSet® RK-797C-3 is optimized for process monitoring for Poke-Yoke implementation in production lines.  Using a load cell combined with a stroke sensor, it’s possible to measure the installation force to detect and avoid inconsistences in clamp load as a result of human-error, maintenance, or set-up.  A force controlled strategy ensures clamp load and effective tightening of the joint. This empowers management to standardize the training process, promote work improvement-oriented actions, unburden quality control staff and prevent/detect/eliminate defects before reaching customers.  The FreeSet® Manager software helps analyze, configure and control the application of rivet nuts as well as the tools configuration and preventive maintenance plan.

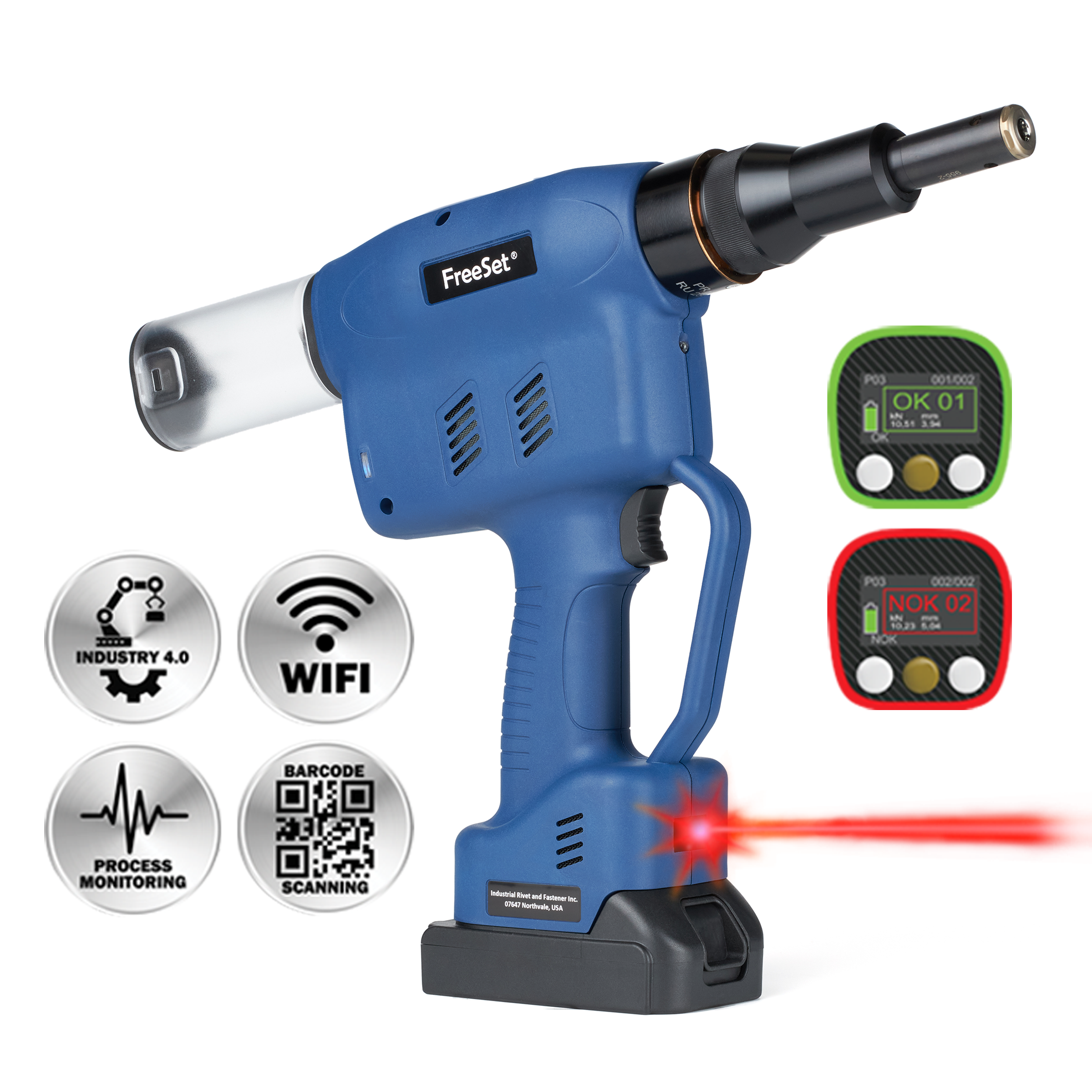

PASS/FAIL: The results of the riveting process inform the operator via the OLED screen, or to external systems via WIFI.  Installation data including force/stroke values are stored on the tool, or if optionally equipped via WiFi to external systems.
WIFI: All RK-787C-3 models can be optionally equipped with 2.4/5.0 gHz WIFI in order to communicate with external controllers or PLC that are part of a Poke-Yoke implementation.  The messages exchange between tool and controller can inform fixtures to open/close, mark an item for QC review, or halt a production line.
BARCODE READER:  All RK-787-3 models can be optionally equipped with a barcode reader for; quick set up, a change in the application parameters, and serial number matching.

FreeSet® is a groundbreaking technology which offers the freedom of battery operated tools combined with smart technologies to provide an interactive riveting experience.  This tool is eco-friendly and considered a green technology since CO2 savings calculations can be made by eliminating the dependence on air compressors.  Flexibility and safety is also dramatically improved without reliance on airhoses.

  • Models
  • Product Assistance
  • Features/Benefits
  • Accessory
  • Download
  • Catalog



Model# Capacity Max Force Stroke Speed USB Scanner WiFi
RK-797C-3 up to ¼” (6.4mm) 4900 lbs. 1” (25.4mm) 25mm/sec Yes Optional Optional

*Tool capacity is subject to max force value.
** BARCODE SCANNER and WIFI options are available upon request

Industrial Rivet & Fastener Co. can help you select the right product or tool for your application.  Please contact our experienced Product Specialists with any questions.  We look forward to hearing from you!  1-800-BUY-RIVET or info@rivet.com

Safer Work Environment • Eliminates trip hazards • Improved ergonomics – no hose to drag around • No hoses to dirty or scratch painted or finished surfaces • Improves air quality by eliminating oil emitted with the air Increased Efficiency • QuickDraw™ Technology drastically increases tool speed • Cordless tools use 99% less energy than air tools • No pressure drops caused by compressors • No maintenance of oilers • No more supply line leaks Freeset™ tools with QuickDraw™ Technology are faster than pneudraulic and hydraulic tools. They can detect when a rivet is applied and quickly reset without having to complete an entire stroke cycle. • 18V, 2.5 Ah Lithium Ion battery • 12-month warranty against manufacturing defects • Tool does not come supplied with nosepieces – they must be ordered separately Freeset™ tools have a battery management system that prevents users from starting a job if the battery life is too low. This eliminates the risk of the tool shutting down mid-installation and not setting the lockbolt properly. CAUTION: When operating always wear safety glasses to protect your eyes.   Increased Quality of riveted joints:

  • Pressure Trigger (if configured)
  • Freeset Manager Software
  • Configurable Settings
  • Maintenance Reminders
  • Pressure Trigger



File Description Version Download
Freeset Manager Software V.2.2.0 Build 2023.01.10 Download Icon PNG Images, Vectors Free Download - Pngtree
Freeset Manager Firmware V2.8.0 Download Icon PNG Images, Vectors Free Download - Pngtree
Freeset Manager Drivers Download Icon PNG Images, Vectors Free Download - Pngtree



Tool Catalog Freeset Brochure
