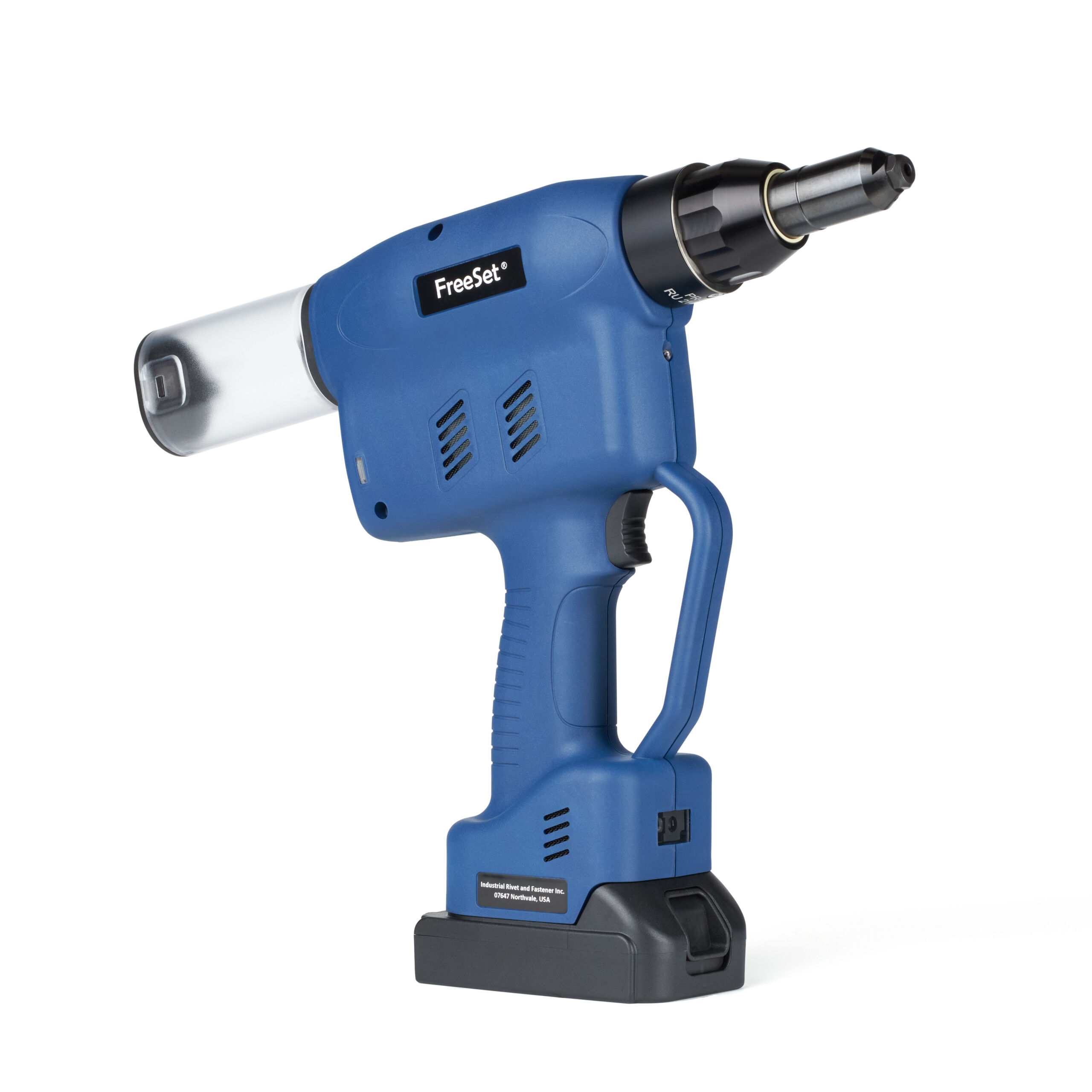

RK-777C-1 FreeSet®Basic Version
RK-777C-1 FreeSet®Basic Version
Safer Work Environment • Cordless!, Eliminates trip hazards • Improved ergonomics • no hoses • no fittings • no air pressure • no oil emitted into the air as is typical with pneudraulic tools.
Increased Efficiency & Productivity • FreeSet™ Technology drastically increases tool speed • Cordless tools use 99% less energy than air tools • No pressure drops caused by compressors • No maintenance of oilers • No more supply line leaks
Maintenance • All models are equipped with Freeset Manager software which allows for preset preventive maintenance intervals by count and alerts the operator before jaw replacement or maintenance functions are necessary.
Reliability & Speed • No more oil, seals and gaskets. Completely electronic all forces are motor driven. Tools which have preventative maintenance reminders have higher reliability.
- Models
- Product Assistance
- Features/Benefits
- Accessory
- Download
- Catalog
| Model# | Capacity | Max Force | Stroke | Speed | USB | Scanner | WiFi |
| RK-777-1Q | up to ¼” (6.4mm) | 4900 lbs. | 1” (25.4mm) | 35mm/sec | Yes | Optional | Optional |
| RK-777-1STR | up to ¼” (6.4mm) *Including Structural Blind Rivets | 4900 lbs. | 1” (25.4mm) | 25mm/sec | Yes | Optional | Optional |
| RK-777-1STRXL | up to 9/32” (7.1mm) | 4900 lbs. | 1” (25.4mm) | 25mm/sec | Yes | Optional | Optional |
*Tool capacity is subject to max force value.
Industrial Rivet & Fastener Co. can help you select the right product or tool for your application. Please contact our experienced Product Specialists with any questions. We look forward to hearing from you! 1-800-BUY-RIVET or info@rivet.com
Safer Work Environment • Eliminates trip hazards • Improved ergonomics – no hose to drag around • No hoses to dirty or scratch painted or finished surfaces • Improves air quality by eliminating oil emitted with the air Increased Efficiency • QuickDraw™ Technology drastically increases tool speed • Cordless tools use 99% less energy than air tools • No pressure drops caused by compressors • No maintenance of oilers • No more supply line leaks Freeset™ tools with QuickDraw™ Technology are faster than pneudraulic and hydraulic tools. They can detect when a rivet is applied and quickly reset without having to complete an entire stroke cycle. • 18V, 2.5 Ah Lithium Ion battery • 12-month warranty against manufacturing defects • Tool does not come supplied with nosepieces – they must be ordered separately Freeset™ tools have a battery management system that prevents users from starting a job if the battery life is too low. This eliminates the risk of the tool shutting down mid-installation and not setting the lockbolt properly. CAUTION: When operating always wear safety glasses to protect your eyes. Increased Quality of riveted joints:
- Pressure Trigger (if configured)
- Freeset Manager Software
- Configurable Settings
- Maintenance Reminders
- Pressure Trigger
Instruction Manual – RK-777C 2022 RevB –
 |
 |
| Tool Catalog | Freeset Brochure |
